The reference

Sixteen commands, no guesswork

Two of them do almost everything: init once, then check forever. The rest are there for the days something is wrong, or CI needs to work differently.

Six of them are verbs that run on their own — init, doctor, capture, compare, check, clean. The rest belong to a noun group and need a subcommand: cloud publish, not cloud. Typing a group on its own prints your choices, does nothing, and exits 2 — a noun is not a verb.

npx norma-scope init

Nothing to install first — npx fetches it on the first run. Node 18 or newer is the whole list of requirements.

16: commands
1: config file
0: accounts to run locally

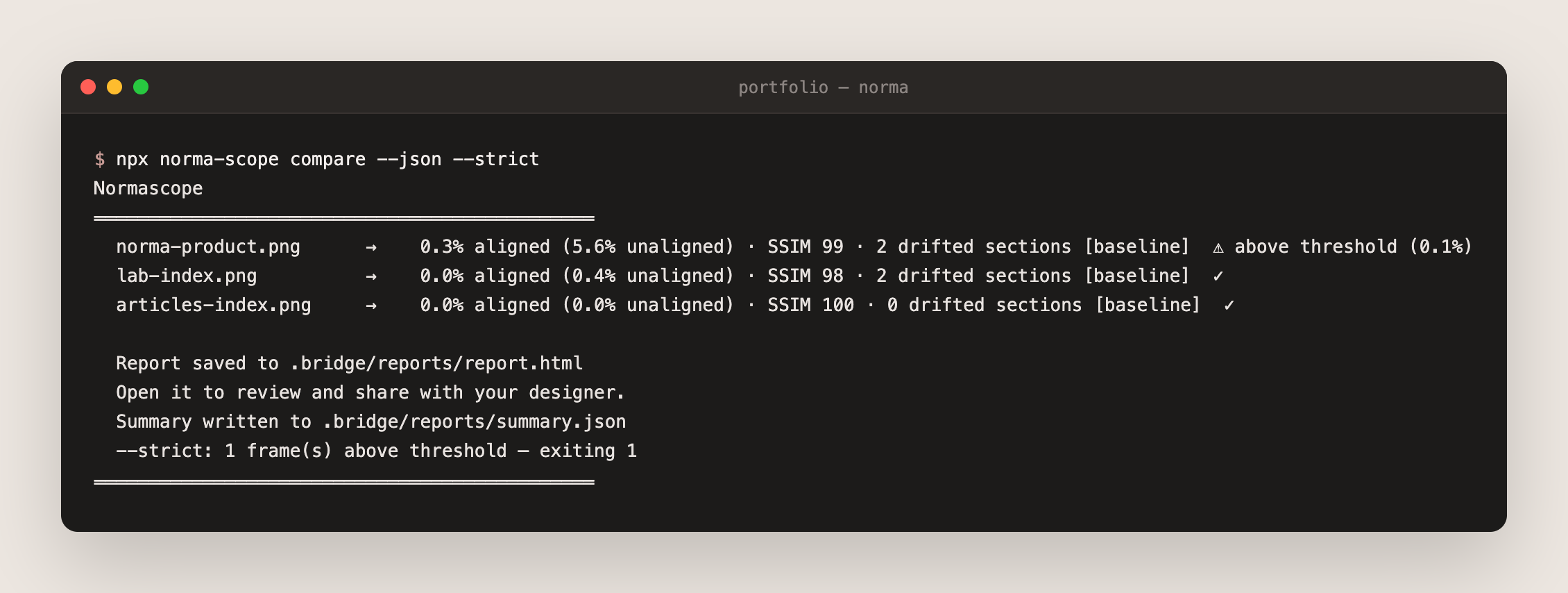

A terminal running npx norma-scope compare with the --json and --strict flags. It prints one line per frame — 0.3% aligned with 5.6% unaligned, SSIM 99 and two drifted sections for the first, 0.0% for the other two — then reports where the report and summary were saved, and that --strict is exiting 1 because one frame is above the threshold. — One real run. **Every command prints like this** — one line per page, the numbers that matter, and exactly where it put the files.

Grouped by what they do

Setup4Capture2Compare2Share4AI1Utility3

Start here

Answer three questions,
get a working config

This writes a real .bridge/config.json and the exact commands to run with it. Copy it into your project and it works.

1 · What are you comparing against?

A Figma fileDesigns live in FigmaA folder of PNGsSketch, Penpot, or a file someone sent youAnother URLStaging vs productionNothing — no designerJust tell me when something changes

2 · Can Normascope reach your app?

Yes, it runs at a URLLocally or on staging — capture for meNo, I'll capture by handNot runnable yet, or curated shots

3 · What should CI do when a frame drifts?

Flag it, don't blockThe default — CI stays greenFail the buildOpt in with --strict

.bridge/config.json

{
  "threshold": 5,
  "source": { "type": "images", "dir": "designs" },
  "app": { "baseUrl": "http://localhost:3000" },
  "frames": [
    {
      "label": "Pricing",
      "screenshot": "pricing.png",
      "route": "/pricing",
      "viewport": { "width": 1440, "height": 900 }
    }
  ]
}

init adds one more line per screen: a short code like fr_k3m9…. It is different for every project, so it is not shown here. It is what lets you rename pricing.png later without losing its history.

then run

$ npx norma-scope init

$ npx norma-scope doctor

# start your app, then:

$ npx norma-scope check

$ open .bridge/reports/report.html

No token, no network, no account — the reference is already in your repo.

Every command

Pick one to see what it does

Setup

Capture

Compare

Utility

Before choosing whether to share usage analytics.

Default collection is release-gated off. Preview opt-in uses NORMA_TELEMETRY=1.

Reads: Local telemetry preference.
Writes: Nothing; does not create an installation ID.
Network: None — it makes no request at all
Can it spend money?: No
Can it fail a build?: No.

Setup

Capture

Compare

Utility

Before choosing whether to share usage analytics.

Default collection is release-gated off. Preview opt-in uses NORMA_TELEMETRY=1.

Reads: Local telemetry preference.
Writes: Nothing; does not create an installation ID.
Network: None — it makes no request at all
Can it spend money?: No
Can it fail a build?: No.

At a glance

What each one touches

Everything here runs on your machine unless the network column says otherwise, and nothing spends money unless the money column says so.

Command	Reads	Writes	Network	Spends
telemetry status	Local telemetry preference.	Nothing; does not create an installation ID.	None	Nothing
telemetry disable	Local telemetry preference.	Persistent opt-out; removes the saved installation ID.	None	Nothing
init	your answers, the design source's API	.bridge/config.json, the .bridge/ folders, .gitignore entries, a pre-commit hook	your design source, to list its frames	Nothing
doctor	config, token, design file, your app URL	nothing — diagnosis only	your design source and your running app, to check both answer	Nothing
capture	config + your running app	.bridge/screenshots/*.png	your own running app, in a headless browser	Nothing
compare	.bridge/screenshots/ + the reference your source points at	.bridge/diff/, report.html, and summary.json with --json	your design source, unless a snapshot or cache already has the reference	Nothing
check	everything capture and compare read	everything capture and compare write	the same as capture and compare — your app, and your design source	Nothing
explain --local [frame]	screenshots, diffs, captured DOM context, optional source excerpts, your API key	findings in the terminal and in the report	your own model provider, under your own key. Nothing goes to Normascope Cloud	your own provider account
cloud publishCloud	.bridge/reports/summary.json and the images it names	.bridge/reports/cloud.json — the receipt, written on every run including a failed one	Normascope Cloud	nothing by itself; --explain spends Cloud credits
cloud validateCloud	.bridge/config.json	nothing — it exits 1 if it found something	None	Nothing
frames listCloud	.bridge/config.json	nothing — it just prints	None	Nothing
frames adoptCloud	.bridge/config.json	.bridge/config.json — then commit it	None	Nothing
ci comment	.bridge/reports/summary.json, and .bridge/reports/cloud.json when a publish wrote one	markdown on stdout	None	Nothing
baseline approve	.bridge/screenshots/	.bridge/baseline/ plus a manifest — commit it	None	Nothing
design snapshot	the design file	.bridge/design/ — commit it	your design source	Nothing
clean	—	empties screenshots/, diff/, reports/ and the cache	None	Nothing

What leaves your machine

The four upload modes

Set cloud.upload in .bridge/config.json, least disclosure first. This only ever applies to cloud publish — nothing else in the CLI sends anything.

Mode	What it sends
off	Nothing at all. No request is made, and `cloud publish` becomes a no-op rather than an error.
metrics	The numbers and nothing else. No pixels leave your machine — and a run with no images cannot be explained by Cloud.
review	Full evidence for every frame over threshold, plus one preview for each clean frame. The default.
full	Full evidence for every compared frame.

Flags

Every option, by command

Anything not on this list is refused. A misspelled flag never runs the command anyway — --dry-runn is an error, not a publish.

--jsoncompare, check: Also write summary.json (schema v3, published and validated)
--jsondoctor: Print the result as one line of JSON instead of a table, for a pipeline to read
--fullcompare, check: Embed full-resolution images in the report
--freshcompare, check: Bypass the design cache and refetch
--strictcompare, check: Exit 1 on a measured regression — the only way a comparison turns a job red
--targetcompare: Zero-config mode: the mock PNG to diff against. Requires --url
--urlcompare: The page to capture, in zero-config mode
--selectorcompare: Capture one element instead of the full page, in zero-config mode
--localexplain: Required. Analyse here, on your own provider key — nothing goes to Normascope Cloud
--allexplain: Explain every compared frame, not just the flagged ones
--deepexplain: Use the stronger, more expensive model
--modecloud publish: Override the configured upload mode for one run: off, metrics, review or full
--dry-runcloud publish: List exactly what would be sent, and send none of it
--full-evidencecloud publish: Full images for every frame, not previews for the clean ones
--explaincloud publish: Ask Cloud to analyse the flagged frames after publishing. Spends Cloud credits
--checkdesign snapshot: Has the live design drifted from the committed exports?
--help, -hevery command: Print what this command does and run nothing

Which do I want?

Start from the problem

“Just tell me if this page matches this picture.”

compare --target x.png --url …

“Do that for five pages, on every commit.”

init, then check

“Take the screenshots for me.”

capture

“Capture and compare in one go.”

check

“Nothing loaded, or it says skipped.”

doctor

“Explain it using my own provider key.”

explain --local [frame]

“Explain it using the Cloud credits I bought.”

cloud publish --explain

“Will Cloud accept my config?”

cloud validate

“There's no designer — I just don't want surprises.”

mode: "baseline", then baseline approve

“CI shouldn't need a design token.”

design snapshot, and commit .bridge/design/

“Render the PR comment.”

ci comment

“Fail the build on a regression.”

compare --strict

Worth knowing

Three things that trip people up

Start your app first

Normascope photographs a running app; it doesn't start one. Run your dev server, then run the command.

Nothing is ever blocked

A bad score is information. The git hook always succeeds and CI stays green unless you explicitly ask for the opposite.

Name the file after the page

The screenshot filename is what ties your design, your capture and the difference together. Keep them the same and everything lines up.

Every command ships with --help, and doctor explains anything that’s misconfigured in your project rather than making you go and look it up.

All of that runs on one machine, for one person.

The moment a second person needs to see a result, or you need to know whether a page has been drifting, you need somewhere to put it.

See what it adds

What the report looks like
